Design a Rear-Overhead EYE XR Golf Bay
Plan the Uneekor EYE XR installation

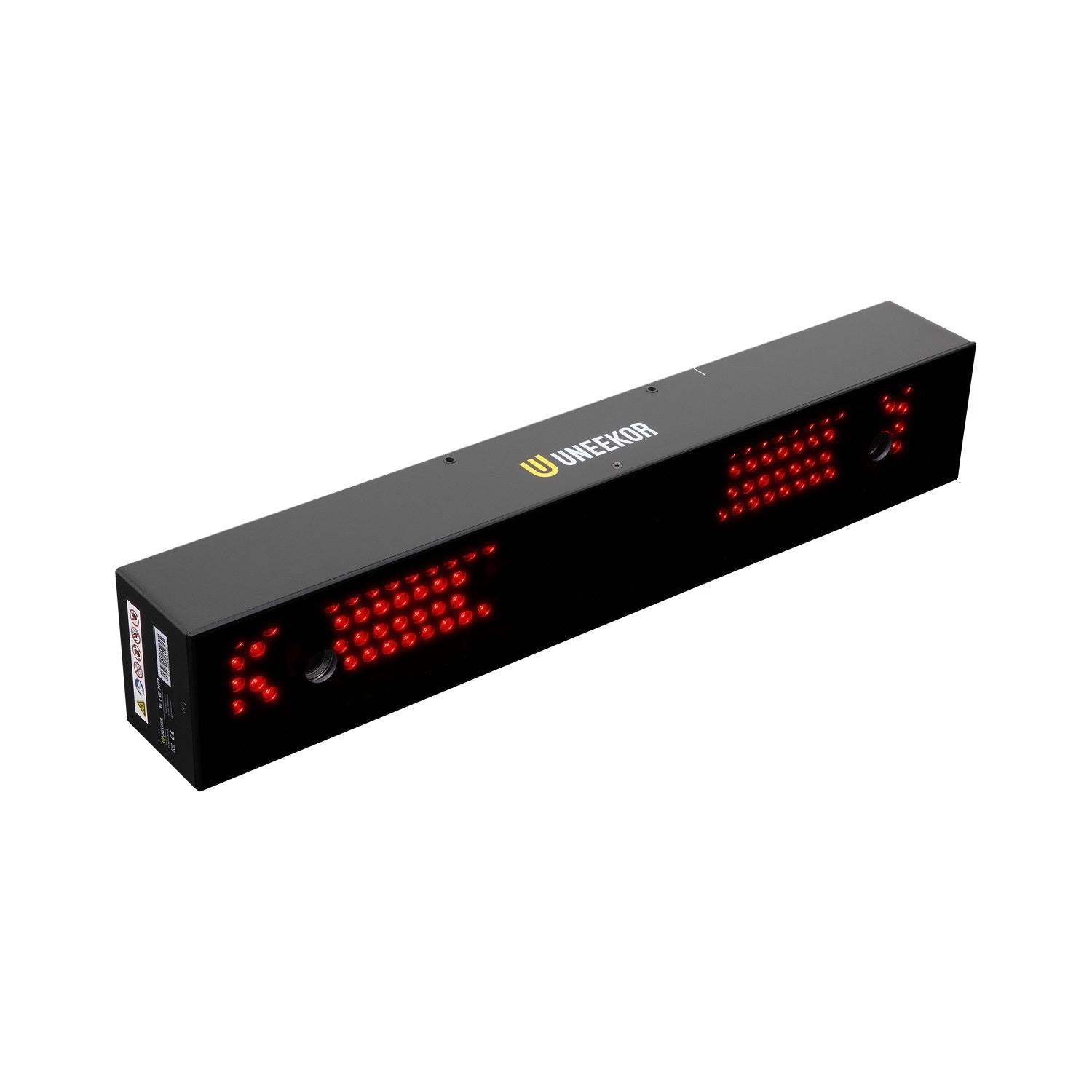

EYE XR mounts overhead behind the hitting area, which creates a different installation plan from front-overhead models. Its listed tracking approach does not require club stickers or specially marked balls. Check the ceiling position, Power over Ethernet connection and computer requirements before placing other equipment.
Choose the projector and enclosure configuration
Compare the named projector in each package with your intended image size and available lens position. Full HD and other projection options have different physical requirements. Keep the rear tracking area, ceiling cabling and projector beam clear of each other and of the full club swing.
Route the rear installation before assembling the enclosure
The listed EYE XR base bundles provide the monitor, named projector and selected DIY enclosure kit. Add the frame pipes, full mat, compatible PC and installation hardware. Plan the rear ceiling location and Power over Ethernet route before fixing other equipment. Check where the projector body and beam sit relative to that tracking installation; neither device inherits the other’s mounting position.
Explore Related Golf Equipment
Uneekor EYE XR vs EYE XO: Rear Mounting or a Longer Hitting Zone?. Read the comparison and planning details before choosing your configuration.
Frequently Asked Questions
Can EYE XR use the mounting position of an EYE XO?
Do not reuse another model’s geometry. EYE XR is a rear-overhead system and must be installed according to its own guide.
Does EYE XR need a separate data and power cable route?
The listed installation uses Power over Ethernet. Review the supplied adapter and connection instructions, and plan the cable route for the exact installation.
Does a rear-overhead monitor mean the projector should also sit behind it?
No. EYE XR placement follows its tracking diagram, while the projector placement follows its lens and image geometry. Map each independently and check the resulting layout, cabling and swing clearance before ordering installation hardware.
