A built-in golf room suits a permanent, room-specific installation; a freestanding enclosure suits a defined structure inside the room. The distinction changes what must be measured, what the order includes and how components can be replaced later.
Within freestanding designs, there is another useful split: configurable frame-and-screen kits such as Carl's Place C-Series, and integrated enclosure systems such as SimBooth with a supplied floor and hitting surface. Compare complete scope before comparing prices.
Three approaches to the same room
| Approach | Example in our catalogue | Main purchase question |
|---|---|---|
| Built-in screen and room treatment | Carl Built-In Kit | What wall, ceiling and finishing work does this room require? |
| Modular enclosure | Carl DIY Kit or Carl Pro Kit | Which frame, screen and protective options are included? |
| Integrated enclosure and floor | SimBooth 1 or SimBooth 2 | Does the complete footprint and floor arrangement fit? |
None of these descriptions automatically includes a launch monitor, projector, computer and software. Check the selected package. A finished promotional photograph often includes components outside the base enclosure order.

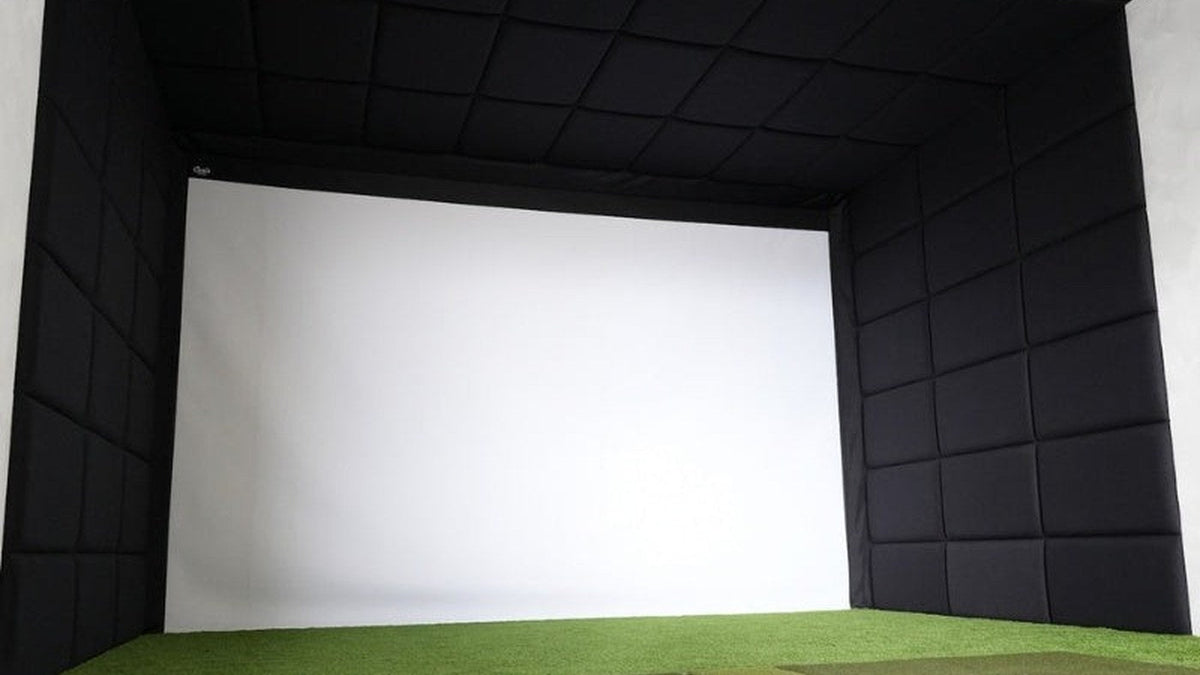

Built-in: measure the room as the structure
A built-in installation can use the room's surfaces to create a finished appearance, but it also depends on those surfaces. Measure width and height at more than one point. Check for uneven walls, trim, obstructions and the attachment locations required by the supplied instructions.
Decide whether you want padded panels, curtains or another specified side treatment before ordering. The built-in screen is only part of the impact area. Plan the edges, ceiling exposure and the space behind the screen with the same care as the central image.
The Carl Built-In Kit can be configured around different room-treatment choices. Budget the selected panels or curtains, the hitting surface and the electronics explicitly rather than assuming they are all included in the screen kit.
Modular: distinguish flexibility from portability
A modular enclosure gives you a separate frame with defined dimensions. That can make the installation easier to describe and can simplify moving components later. It does not mean the assembled enclosure is intended to be rolled around, or that it needs no attachment or clearance provisions.
With Carl DIY Kit and Carl Pro Kit options, confirm the frame configuration, screen size, pipe supply and intended accessory mounts. Use accessories designed for the selected system. An overhead launch monitor or projector adds load and positioning requirements that should not be inferred from a similar-looking frame.
Ask how the impact screen is removed. If replacing it requires moving the entire enclosure, leave a workable path and cable slack according to the equipment instructions. Service access is a buying feature even when it is invisible in the product photograph.
Integrated systems: account for the floor
SimBooth's listed systems include their own structure, panels, full-surface floor and hitting surface. That makes the supplied scope different from an enclosure-only kit.
| Listed enclosure dimension | SimBooth 1 | SimBooth 2 |
|---|---|---|
| Outside width | 11 ft | 12 ft 4 in |
| Outside height | 7 ft 10 in | 8 ft 9 in |
| Depth including floor | 12 ft | 12 ft |
These are enclosure dimensions, not minimum room dimensions. The room must also accommodate assembly, access, the golfer and the selected electronics. A lower enclosure roof does not establish a universal safe swing height.
For either integrated or custom flooring, measure ceiling clearance from the finished standing surface. A floor buildup changes headroom and the monitor-to-ball relationship. It can also create a step at the room entrance that needs to be considered in the layout.
Compare the work hidden outside the product price
For a built-in room, list wall preparation, mounting, panels, curtains and finishing work. For a modular kit, list pipe sourcing if applicable, assembly and separately selected flooring. For an integrated system, confirm delivery access, the complete footprint and the work needed to connect the electronics.
Keep those items in the comparison even if you plan to do the labor yourself. Time, tools and access constraints are real differences between the choices. A wider integrated floor may be convenient in a dedicated room and inconvenient in a room that must retain another use.
Choose around the next change as well as the first installation
If you expect to change screen size, monitor position or room use, identify which parts can be changed independently. A modular system may make some changes easier; a built-in room may give a cleaner permanent result when the layout is settled.
Before ordering, ask for the exact assembly instructions and a list of replaceable parts for the selected configuration. Compare how you would replace the screen, reach the projector and service the launch monitor. That turns the choice into a room you can maintain, not only an attractive first-day installation.
Plan your next step
Compare Carl Built-In Kit, Carl Pro Kit and SimBooth 2 with the same floor and electronics scope. Use our DIY vs Pro guide for the modular options.
Sources and specifications
Specifications reviewed October 10, 2026. Dimensions and worked examples are for planning; use the current installation guide and selected product configuration before ordering.
