A frame-mount projector mounting kit is worth considering when your enclosure can support the approved mounting arrangement and place the projector lens where the image needs it. Start with those two conditions. Choosing a bracket first can leave you with hardware that attaches neatly but projects the wrong image size.
This guide works through the Frame-Mount Projector Mounting Kit, Carl’s enclosure compatibility and four BenQ options: AH700ST, AK700ST, LK830ST and LK936ST. It is a planning guide based on manufacturer specifications and calculated examples, rather than a physical installation test.
First identify the enclosure, then the projector

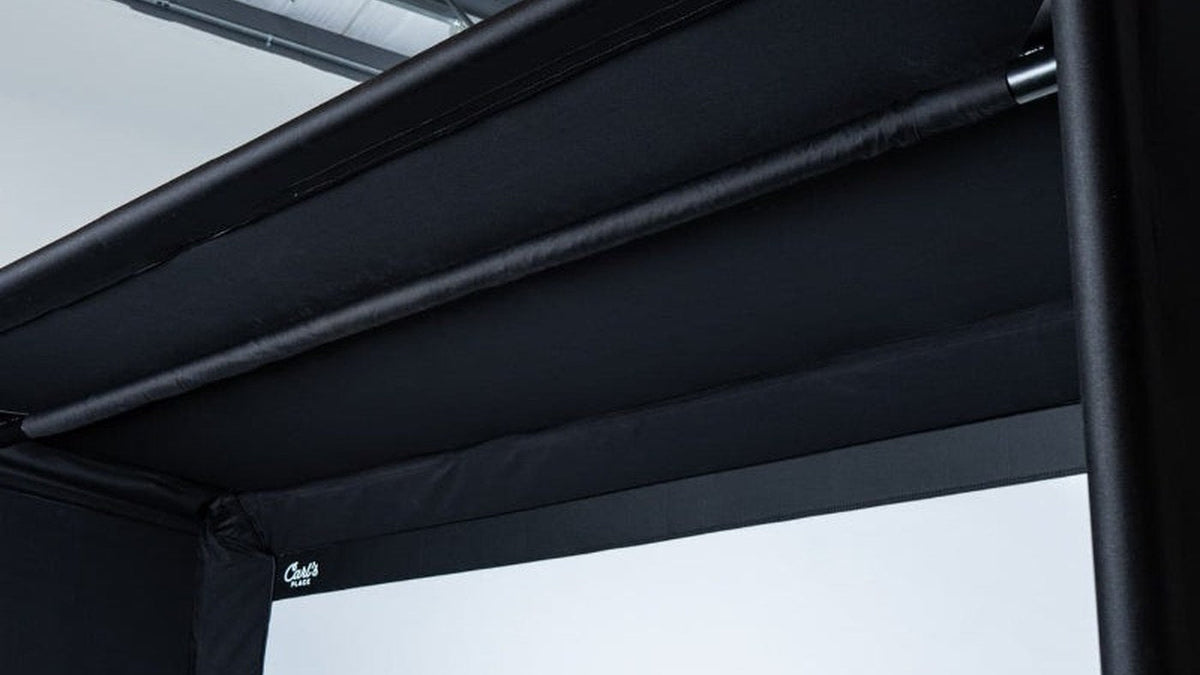

Carl’s describes this kit for its PRO enclosure. That matters if you own a C-Series DIY enclosure: the shared brand name does not establish frame-mount compatibility. A SIG8, SIG10 or SIG12 enclosure also needs its own approved mounting arrangement. Do not transfer approval from the Carl’s PRO system to another frame.
Record the enclosure model, generation, selected dimensions and the intended attachment point. Send those details with a photograph of the frame connection when asking for fit confirmation. “A ten-foot enclosure” leaves out the information needed to identify the correct structure.
Then check the projector-side mounting pattern and fasteners. A mount described as universal still needs to match the actual chassis. Weight capacity alone does not establish that fit.
Three measurements that must stay separate
| Measurement | Purpose | Common mistake |
|---|---|---|
| Projector mounting-hole layout | Whether the adapter can attach correctly to the chassis | Treating adapter reach as an extension toward the screen |
| Lens-to-screen distance | Whether the optics can produce the intended image size | Measuring from the crossbar or rear of the projector |
| Lens height and lateral position | Whether the image aligns with the screen | Assuming a correct distance also guarantees correct height |
The product lists a plate extension up to 17.63 inches and support up to 50 pounds. Neither number defines how far the lens can move along your room. The projector body, adapter and frame bracket determine where the lens actually lands after assembly. Verify that relationship in the installation drawings.
A worked example: a 12-foot-wide image
For an initial optical calculation, multiply the width of the full native image by the throw ratio. The four BenQ models below use a native 16:9 image. A 12-foot-wide image in that format is 6.75 feet tall.
| BenQ projector | Published throw ratio | Approximate lens distance |
|---|---|---|
| AH700ST | 0.69 to 0.83 | 8.28 to 9.96 ft |
| AK700ST | 0.69 to 0.83 | 8.28 to 9.96 ft |
| LK830ST | 0.496 | 5.95 ft |
| LK936ST | 0.81 to 0.89 | 9.72 to 10.68 ft |
These are planning calculations, not approved bracket locations. They assume a full native image without digital shrinking, keystone correction or screen-fitting margins. Confirm the final position using the current projector installation information.
Suppose an approved frame arrangement places the lens approximately six feet from the screen. The required throw ratio for a 12-foot native image is 6 ÷ 12 = 0.50. The LK830ST’s optical geometry is close to that target. The other three need a farther lens position for the same native image width. That observation narrows the optical shortlist; it does not certify that the LK830ST bolts to the selected mount or clears the frame.
Do not add an improvised arm to bridge the difference. A plan that needs the lens several feet behind the approved frame location should be reviewed as a different mounting arrangement, such as a properly specified ceiling installation.
A taller screen changes the calculation
A 12-foot-wide, 9-foot-high screen is 4:3. The 12-foot-wide native 16:9 image in the table reaches only 6.75 feet in height. If your supported display workflow uses the full height of a native 16:9 raster to show 4:3 content, a 9-foot raster height corresponds to a 16-foot native raster width.
In that example, calculate the optical distance from 16 feet, not 12. For the LK830ST, 16 × 0.496 = 7.936 feet, approximately 7.94 feet. That is almost two feet farther than the first example. The chosen signal, aspect-ratio mode and fitting method must support the intended result; a software setting alone does not establish mounting clearance.
Decide whether you want a shorter 16:9 image on the screen or a supported workflow that uses more screen height before choosing the mount. Our screen aspect-ratio guide explains the trade-offs.
Check the vertical position before committing to the frame
A crossbar can be at the right distance and still leave the lens too high or too low. Draw the lens center, the top and bottom of the intended image, and the projector body in a side view. Check the model’s projection offset and available optical adjustment using its manual.
The LK936ST has optical lens shift. Its adjustment still has limits, and a lens shift setting does not change the required throw distance. Likewise, tilting a projector and correcting the resulting image electronically is a different workflow from positioning it level. Choose the intended alignment method before deciding that a frame location works.
Use a decision worksheet before ordering
| Record | What a completed answer looks like |
|---|---|
| Enclosure identity | Exact model, generation, selected dimensions and approved mounting method |
| Image target | Visible width, visible height, aspect ratio and display fitting method |
| Lens position | Distance from screen plane, height above finished floor and lateral offset |
| Hardware fit | Mount model, projector mounting pattern and specified attachment hardware |
| Occupied space | Projector body, ventilation clearance, cables, frame and player swing area |
| Installation acceptance | Image aligned, fastenings checked and no unacceptable movement during normal use |
Evaluate the complete projector body, not just a dot marking the lens. Leave the required ventilation space and a cable route that does not pull on the connections. Include the tallest intended player and longest club in the room assessment. If you cannot establish clear separation between equipment and the swing area, revise the layout.
When would a ceiling mount be the better starting point?
Consider a ceiling arrangement when the required lens position sits outside the enclosure’s approved mounting locations, when the frame does not support the intended accessory, or when independently positioning the projector resolves the room layout. That choice needs its own suitable structure and mounting hardware.
For an approved frame installation, inspect the image during normal use after completing the prescribed setup. If you observe unwanted movement, investigate the mounting arrangement and frame assembly. Image-processing settings cannot correct a physically moving projector.
Questions buyers ask
Can I assume this kit fits a Carl’s DIY enclosure?
No. The manufacturer identifies the PRO enclosure for this kit. Get confirmation for the exact enclosure and hardware before ordering. The DIY versus PRO guide explains the broader system differences.
Will all four BenQ models work from the same frame location?
Their throw ratios differ. AH700ST and AK700ST share a published range, while LK830ST needs a much closer position and LK936ST uses a farther range. Each still requires separate checks for mounting hardware, body clearance and vertical alignment.
Does this guide confirm a compatible mount-and-projector combination?
It provides the information needed to check one. The calculations address optical placement; final compatibility depends on the exact frame, bracket, projector and installation arrangement.
Start with the mount’s product details and installation documents, then compare them with your completed worksheet. Send Indoor Golf Kit your enclosure model, projector model, image dimensions and proposed lens position so the configuration can be checked before you order.
