A golf simulator screen should be chosen around the room and the image you want to display. Its aspect ratio describes the relationship between width and height not its quality, resolution, or overall enclosure size.
Choosing that relationship early makes it easier to coordinate the impact screen, enclosure, and projector. Choosing it late can leave unused screen area or force an awkward projection arrangement.
Start with one width and compare the heights
Aspect ratio is width divided by height. At the same width, a 4:3 picture is taller than a 16:9 picture, and a square picture is taller again. The following examples are arithmetic illustrations, not recommendations for minimum room dimensions.
| Aspect ratio | Image width | Image height |
|---|---|---|
| 16:9 | 10 feet | 5.625 feet |
| 4:3 | 10 feet | 7.5 feet |
| 1:1 | 10 feet | 10 feet |
The calculation is height = width × the ratio's second number ÷ its first number. This lets you test a proposed picture size before buying a physical screen.

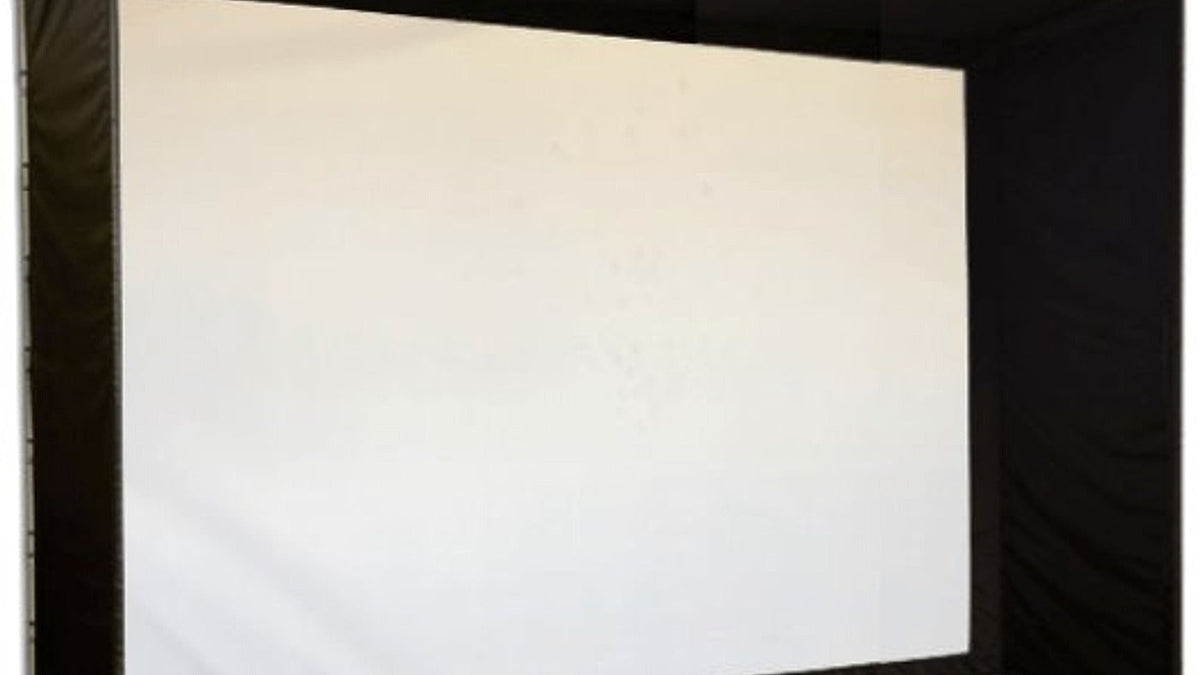

Visible image, finished screen, and enclosure are different measurements
The image area is the portion you intend to illuminate. The finished screen may also include borders or attachment edges. The enclosure's external frame occupies still more space. Use the correct measurement for each planning task.
For example, the manufacturer lists the SIG10 enclosure at 10 feet 10 inches outside width, while its listed screen width is 10 feet 1 inch. Using the outside frame width in a projector calculation would therefore start with the wrong picture dimension. See the SIG10 specifications for the separate measurements.
With a configurable Carl's Place DIY enclosure, check the drawing for your selected size. The nominal size name should not replace the full dimensional information.
Why 4:3 often enters the conversation
A taller format can use more vertical space when room width is limited. That may suit a golfer who prioritizes a taller projected course image over widescreen entertainment. But the room must still accommodate the enclosure and a safe swing.
Do not conclude that a taller screen fixes a low ceiling or that a 4:3 surface automatically receives a full-height image from any projector. The source resolution and projector configuration must match the intended presentation.
Where 16:9 can make sense
A widescreen image is worth considering when you have the width and want the same surface to serve golf and other widescreen viewing. Several projectors in our catalog, including the BenQ AK700ST, have a native 16:9 display format. BenQ documents that in its AK700ST specifications.
A native-format match can simplify one part of image planning, but it does not establish that the lens can create the required width from your available mounting position. Throw distance remains a separate calculation.
Square screens need deliberate formatting
A square target has equal width and height. That can be useful for certain constrained or portable arrangements, but a widescreen source will not automatically fill the surface without a formatting choice.

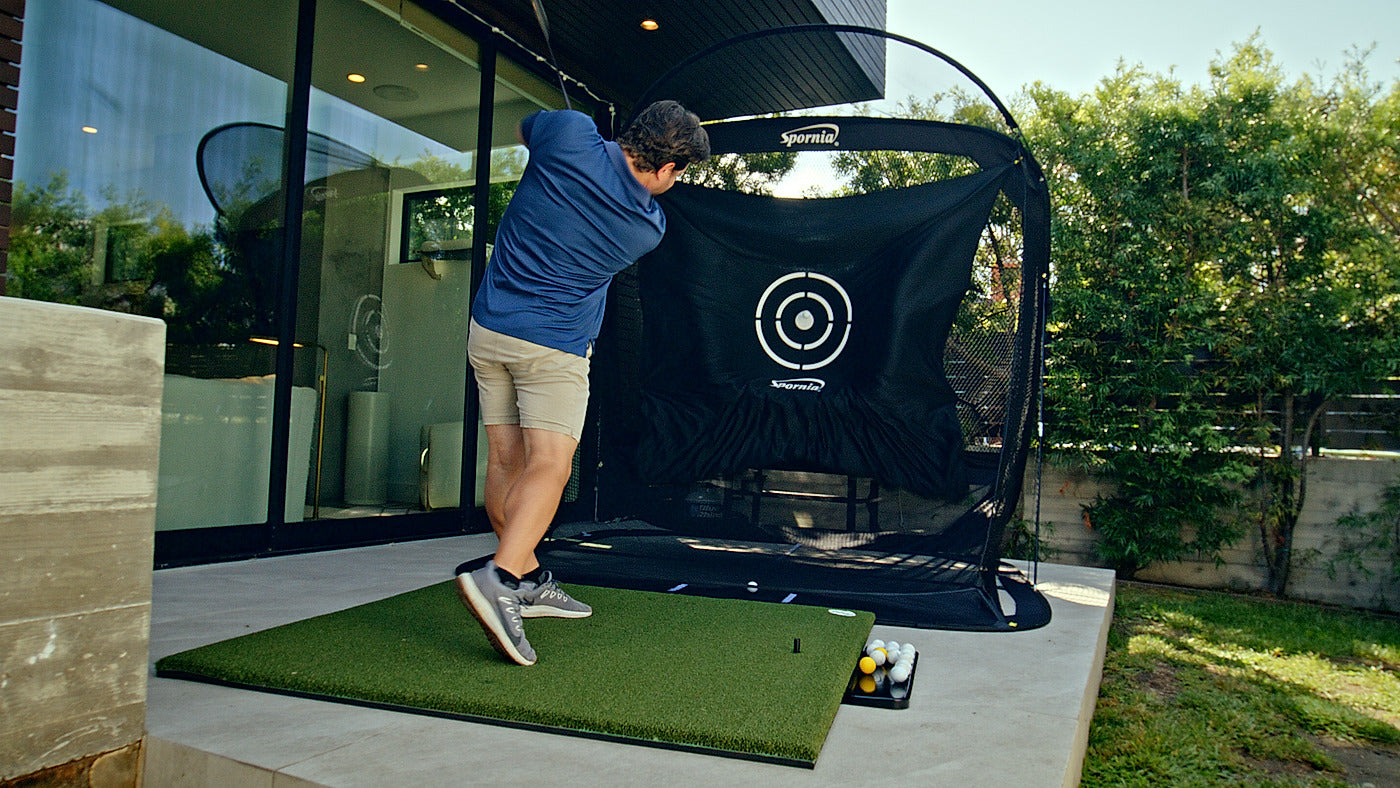

The Spornia simulator target sheet is a concrete example. The manufacturer lists square projection targets for its SPG-7 and SPG-8 nets in its projection-target guide. Select the correct target and plan the image area rather than expecting a full-width widescreen picture to occupy the entire square.
Decide what happens to the unused area
When the source image and physical screen have different shapes, you need a deliberate choice. You might accept unused screen area, select another supported software resolution, or use the projector's available fitting functions. Different settings can change scaling and the portion of the native image frame used.
Do not crop important shot information merely to eliminate borders. Likewise, do not stretch the picture disproportionately to make it fit. Check both course play and the software's menus or data panels, because they may reveal formatting problems differently.
Use this order before purchasing
First, measure usable room width and height after accounting for obstructions. Second, choose a realistic image width and calculate the height for each format. Third, check the full frame and required clearances. Fourth, verify the software output and projector settings. Finally, establish the lens position and mounting method.
Record the actual active picture dimensions used for the throw calculation. If electronic fitting reduces the image inside a larger native frame, verify the complete optical arrangement with the manufacturer's planner or installation documentation.
Once you have chosen the usable image shape, match the enclosure and projector in the Simulator Builder. Keep the screen dimensions and lens placement beside your saved build so equipment selection and image geometry are reviewed together.
Frequently asked questions
Is a 4:3 screen lower quality than a 16:9 screen?
The ratio alone does not tell you material quality or image sharpness. It describes shape.
Will a 4K projector fill every screen with all its native pixels?
No. Formatting, scaling, and the chosen image area affect how the native frame is used.
Should I order by diagonal measurement?
Width and height are more useful when checking a real room. Also confirm borders, attachment requirements, and the enclosure's outside dimensions.
