The BenQ LK830ST makes its strongest case when you want a 4K golf image and the usable lens position is close to the screen. Its fixed 0.496:1 throw ratio can put a 12-foot-wide native 16:9 image roughly 5.95 feet from the lens. The trade-off is physical precision: there is no optical zoom range to absorb a mounting mistake.
This review evaluates published specifications, the BenQ manual and original room-planning calculations. It does not claim hands-on brightness, noise or image-quality measurements. Use it to decide whether the LK830ST belongs in your build before choosing a bracket or protective housing.
The buying verdict: a strong fit for a settled, close-mount layout
Shortlist the LK830ST when the screen size is decided, a near-screen position clears the hitting area, and you can align the lens with the screen. It is especially relevant when a longer-throw 4K model would put the projector near a beam, overhead device or an inconvenient part of the swing space.
Reconsider it when you need to keep an existing mount at an arbitrary distance, expect to move the screen regularly, or require optical lens shift to compensate for an off-center position. Buying 4K does not solve those placement conflicts. The right projector is the one that produces the intended image from the lens position your room actually allows.
| Published detail | What it changes |
|---|---|
| 4K UHD output: 3840 × 2160 | Allows a higher-detail source image; the computer, application and screen still determine what you see. |
| 4,000 ANSI lumens | A brightness rating to assess alongside image area and screen lighting, not a guarantee of daylight contrast. |
| Fixed 0.496:1 throw ratio | The desired image size largely determines the lens distance. |
| 114% full-height projection offset | Lens height needs a separate check; distance alone cannot approve the mount. |
| Screen Fill: 16:9, 16:10, 4:3, 1:1 and 5:4 | Supports common golf screen shapes, with different active image areas. |
| Two HDMI 2.0b inputs | Plan the signal route from the simulator computer and any second source. |
What the short lens solves and what still needs room
For a full native 16:9 picture, distance equals image width multiplied by 0.496. A 10-foot-wide picture starts at about 4.96 feet; 14 feet of width starts at about 6.94 feet. Measure from the lens to the screen surface, not from the ceiling plate, rear casing or wall behind the screen.
Those are optical estimates, not complete room-depth requirements. You still need the screen's required rear clearance, a usable hitting position, a clear swing and the launch monitor's specified working space. A shorter lens can solve a projector-placement problem without making a room large enough for golf.
Picture two otherwise identical builds. One has a clear lens position six feet from a 12-foot-wide widescreen image: the LK830ST is a sensible candidate. The other has a fixed lens position nine feet away: the full unshrunk image would be approximately 18.15 feet wide. That second room needs a deliberate redesign or a different lens choice, not an assumption that the same projector will fit because the ceiling is already wired.
Do not apply these width-based examples unchanged to a tall 4:3 or square screen. Our LK830ST Screen Fill guide explains the full optical frame and the height-based calculation. Keeping that calculation separate prevents a very common purchasing error.
Where 4K can earn its place in the budget
A useful way to assess resolution is to calculate the nominal pixel spacing on your intended image. On a 14-foot-wide 16:9 picture, 3840 columns correspond to roughly 1.11 mm per displayed pixel position. At 1920 columns, that becomes about 2.22 mm. These are geometric calculations, not measured lens sharpness or a promise that every golfer will notice the same difference.
The extra detail is most relevant when you want to read small on-screen information, use a large image, or share the room with a detailed 4K video source. Its value is lower when the computer renders the course at a lower resolution, the source scales the picture poorly, or the screen material and focus limit visible detail. Budget for the whole signal chain before paying for the label.
A square Screen Fill image also does not retain all 3840 horizontal columns. The manual lists 2160 × 2160 for the enhanced square mode and 2880 × 2160 for enhanced 4:3. That can still provide substantial detail, but it is a different active picture from 3840 × 2160 widescreen. Confirm the selected mode and detected input before judging the result.
GSPro and 4K: check the output, not only the desktop setting
The projector receives video from the computer; it does not run GSPro or improve the computer's rendering speed. Keep launch-monitor/software compatibility separate from the HDMI display connection. A projector appearing as a second display says nothing about whether the simulator software and monitor are licensed or configured to work together.
- Connect the computer directly for the initial display check and identify which Windows display is the projector.
- For widescreen 4K, verify a supported 3840 × 2160 signal at 60 Hz. The LK830ST manual includes this timing; it does not list 4K at 120 Hz.
- Check the projector's detected resolution as well as the computer's active signal. Then inspect the course, shot information and application menus.
- After the direct connection works, test the final cable route, wall plates or other devices as a complete chain. Resolve dropouts before concealing the cable.
BenQ publishes 16.7 ms input lag at 4K/60 Hz. That describes the display, not the total delay from a ball strike through the launch monitor, software and graphics system. Treat the lowest-lag operating mode and your final geometry settings as something to check together during setup, not as an end-to-end simulator-speed promise.
Brightness: screen area is part of the specification
A 4,000-lumen rating cannot answer whether a particular garage will look good with the door open. Light striking the impact screen, image area, the selected picture mode and the screen surface all affect the result. Start by keeping room lighting away from the projected image.
For example, increasing a 16:9 image from 12 to 16 feet wide increases its area by about 78%. With the same light output spread uniformly over that larger area, light per unit area would fall to roughly 56% of the smaller image's level. This is a relative area calculation; it is not a measured LK830ST brightness result.
That is a reason to choose screen size intentionally. If your build needs a larger, brighter picture and also has room for a longer lens position, the LK830ST versus LK936ST guide helps assess whether the different optics and higher published light output solve the actual problem.
Installation details that can change the purchase
Focus and alignment: use a detailed test image across the whole screen, including corners and small text. Confirm the physical alignment before relying on digital correction. A feature list is not evidence that every combination of tilt, shrink and screen shape preserves the detail you want.
Physical clearance: BenQ lists the chassis at approximately 10.99 × 4.74 × 9.03 inches and 7.93 lb. A housing or bracket must accommodate the lens position, airflow and cables as well as the body. A product fitting inside a box does not establish mounting compatibility.
For a floor installation, use our LK830ST floor-projector fit guide before selecting a protective housing. It works through the lens-height calculation, including a screen position that a level floor-mounted unit cannot reach.
Room noise and maintenance: the published acoustic figures are 30 dB typical and 24 dB Eco. These are manufacturer values, not measurements from a finished bay. Check how the unit sounds near your normal position and whether the selected light mode still gives a satisfactory picture. The sealed optical engine does not remove the need to keep ventilation unobstructed.

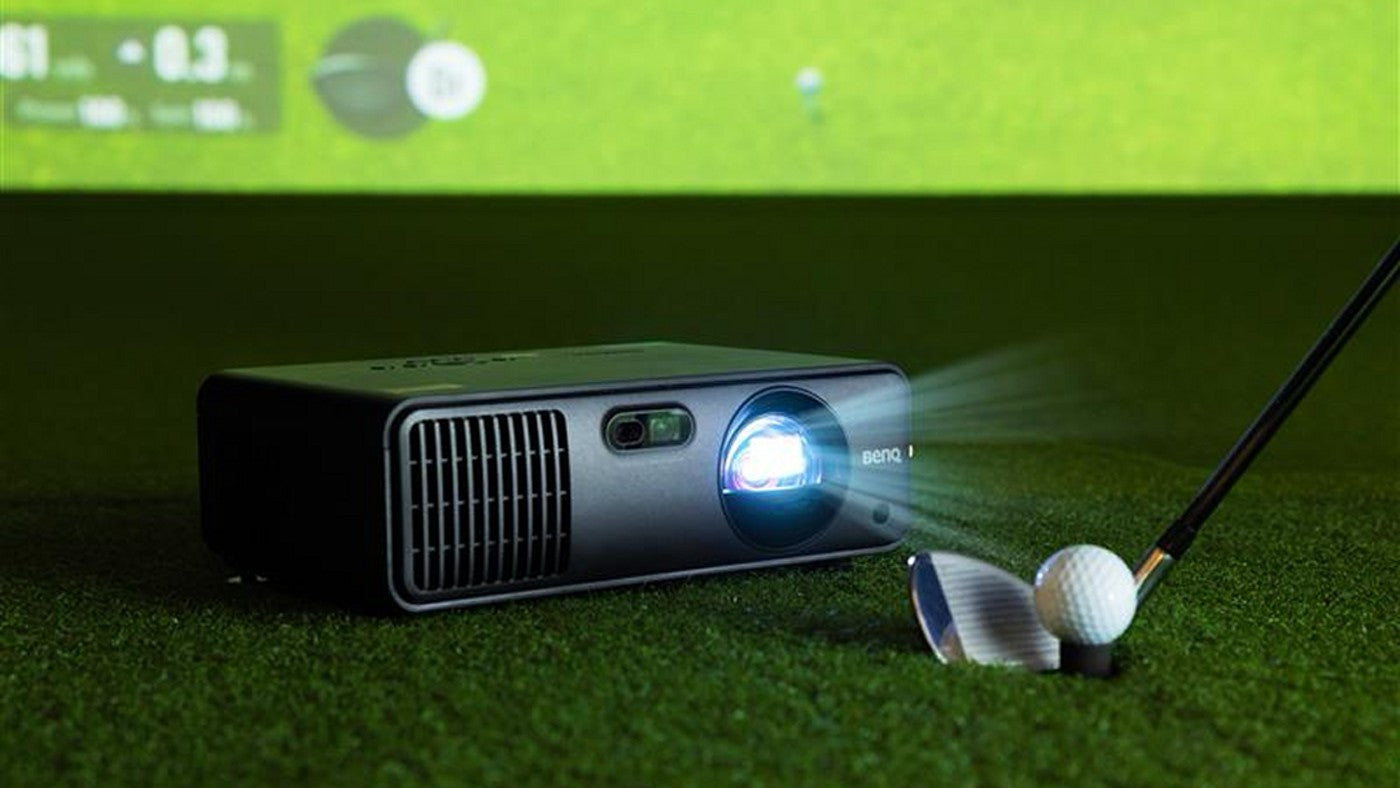

Automatic setup: Screen Fill is an aspect-ratio tool. The LK830ST does not offer the camera-based Auto Screen Fit workflow used by the AK700ST and AH700ST. If automatic fitting and an optical zoom range are central to your plans, read the AK700ST versus LK830ST comparison before ordering.
A practical purchase check
Write down the visible screen width and height, the screen's bottom edge above the finished floor, the proposed lens distance and height, and the computer's intended output. Add the projector, mount or housing, signal cable and any changes needed to the room to the same budget. Compare current price and availability on the BenQ LK830ST product page rather than treating a copied article price as a current offer.
If the optical position fits and the computer can supply the picture you want, the LK830ST is a well-targeted 4K option for a close installation. Carry those measurements into the Simulator Builder to plan the rest of the setup. If the numbers conflict, resolve that conflict before buying the mounting hardware.
Questions buyers ask
Is the LK830ST an ultra-short-throw projector that sits inches from the screen?
Use its 0.496 ratio instead of relying on a retailer's category label. A 12-foot-wide native image needs roughly six feet of lens distance. That is a short placement for a large golf image, but it is not the inches-from-the-wall layout associated with a living-room laser TV.
Can I keep my current ceiling mount?
Possibly, after checking its actual lens distance, lens height, bracket compatibility and clearance. The existing ceiling attachment point alone is not enough. The fixed lens means a mismatch may require moving the mount or choosing another model.
Is 4K mandatory for a golf simulator?
No. Choose it when the image size, viewing distance, source and budget justify the detail. Our six-model BenQ comparison includes 1080p alternatives when those better match the complete build.
Specifications and calculations checked October 17, 2026. Technical reference: BenQ LH830ST / LK830ST / LW830ST user manual, version 1.1. The calculations are planning estimates; confirm the final picture with the actual unit before permanent installation.
