The BenQ LK936ST is worth shortlisting when your golf room needs both a 4K image and optical flexibility in where the projector sits. Its published 5,100-ANSI-lumen rating and horizontal and vertical lens shift are the reasons to investigate it. Its 0.81–0.89 throw ratio is equally important: the available lens position still has to work.
This is a buying review based on BenQ specifications, the user manual and our own calculations. It does not claim hands-on measurements of light output, contrast, fan noise or focus uniformity. Use it to decide whether the LK936ST solves a room-planning problem that a simpler projector does not.
The buying verdict: pay for a constraint you actually have
The strongest case is a room where you want 4K, a higher rated light output than a 4,000-lumen model, and the ability to move the image optically while keeping the projector square to the screen. A fixed beam, an awkward ceiling attachment point or a preferred lens height can make that optical adjustment valuable.
The case is weaker when the mounting position is already easy, the screen is modest in size, or your room is too shallow for the lens range. For a very close 4K installation, compare the LK830ST before assuming the more adjustable projector is the better fit.
| Feature | Published specification | Practical implication |
|---|---|---|
| Displayed resolution | 3840 × 2160 | A 4K image grid; the source, screen surface and correction settings influence visible detail. |
| Brightness | 5,100 ANSI lumens | 27.5% above a 4,000-lumen rating, before considering mode, optics or room conditions. |
| Throw ratio / optical zoom | 0.81–0.89 / 1.1× | A relatively narrow distance interval for a chosen full optical image size. |
| Optical lens shift | Vertical ±60%; horizontal ±23% | Check the combined shift envelope. Do not assume both maximum values are available together. |
| Focus and zoom adjustment | Manual controls | Plan physical access for setup and later adjustment. |
How much room does 5,100 lumens buy?
Compared with 4,000 lumens, the published rating is 27.5% higher: 5100 ÷ 4000 = 1.275. That is a useful difference, but a bigger screen can consume it quickly.
At the same aspect ratio, screen area grows with the square of width. Increasing a 16:9 picture from 12 to 14 feet wide increases its area from 81 to 110.25 square feet about 36.1%. That area increase is larger than the difference between the two brightness ratings.
| Scenario | 16:9 image area | Rated lumens divided by area, relative to the baseline |
|---|---|---|
| 4,000 lumens on a 12-foot-wide image | 81 sq ft | 100% baseline |
| 5,100 lumens on the same 12-foot-wide image | 81 sq ft | 127.5% |
| 5,100 lumens on a 14-foot-wide image | 110.25 sq ft | About 93.7% |
This is a ratio calculation, not a measured screen-brightness result. It assumes comparable light utilization and ignores picture mode, zoom losses, screen gain, digital reduction and ambient light. It shows why a higher lumen number cannot be evaluated independently of image size.
Under those same simplified assumptions, 27.5% more light supports about 12.9% more image width at equal light per unit area, because the square root of 1.275 is approximately 1.129. Use the result as a planning relationship, not a promise of daylight performance.
Before increasing projector output, identify where room light hits the screen. A bright fixture aimed at the impact surface can weaken perceived contrast even when the projector's output is adequate. Controlling that light can be as consequential as choosing between two lumen ratings.
Lens shift is valuable when the projector can stay square
Optical lens shift moves the projected image without requiring the body to aim sideways or vertically at an angle. That can help position the image while avoiding digital reshaping as the first solution. It does not remove a trapezoid caused by aiming the projector obliquely at the screen.
BenQ lists ±23% horizontal and ±60% vertical shift. The manual's combined-range diagram limits which horizontal and vertical positions can be used together. A mount near both extreme values needs particular care; treating the two percentages as an unrestricted rectangle overstates the available adjustment.
The useful purchase question is therefore specific: “Can the lens remain square at this measured location and move the image into place?” Use the LK936ST lens-shift mounting worksheet to record the full optical image and both required offsets. That worksheet covers the placement calculation in more detail.
Check distance before relying on optical adjustment
Lens shift changes position, not the throw ratio. For a full 12-foot-wide 16:9 image, the 0.81–0.89 range produces a calculated lens distance of 9.72–10.68 feet. That is only a 0.96-foot interval about 11.5 inches before installation tolerances or other constraints.
For a 12 × 9-foot 4:3 active picture using the full native image height, the surrounding 16:9 optical width is 16 feet. The same lens range then produces 12.96–14.24 feet. A supported computer resolution or a cropped active picture does not change the lens's underlying geometry.
These calculations assume the stated image arrangement before additional digital correction. Verify the required output mode, manufacturer image-size limits and final fit in the actual room. If the available distance falls well outside the range, more lens shift is not the answer.
Which BenQ comparison should come next?
| Question | Useful comparison | Decision to make |
|---|---|---|

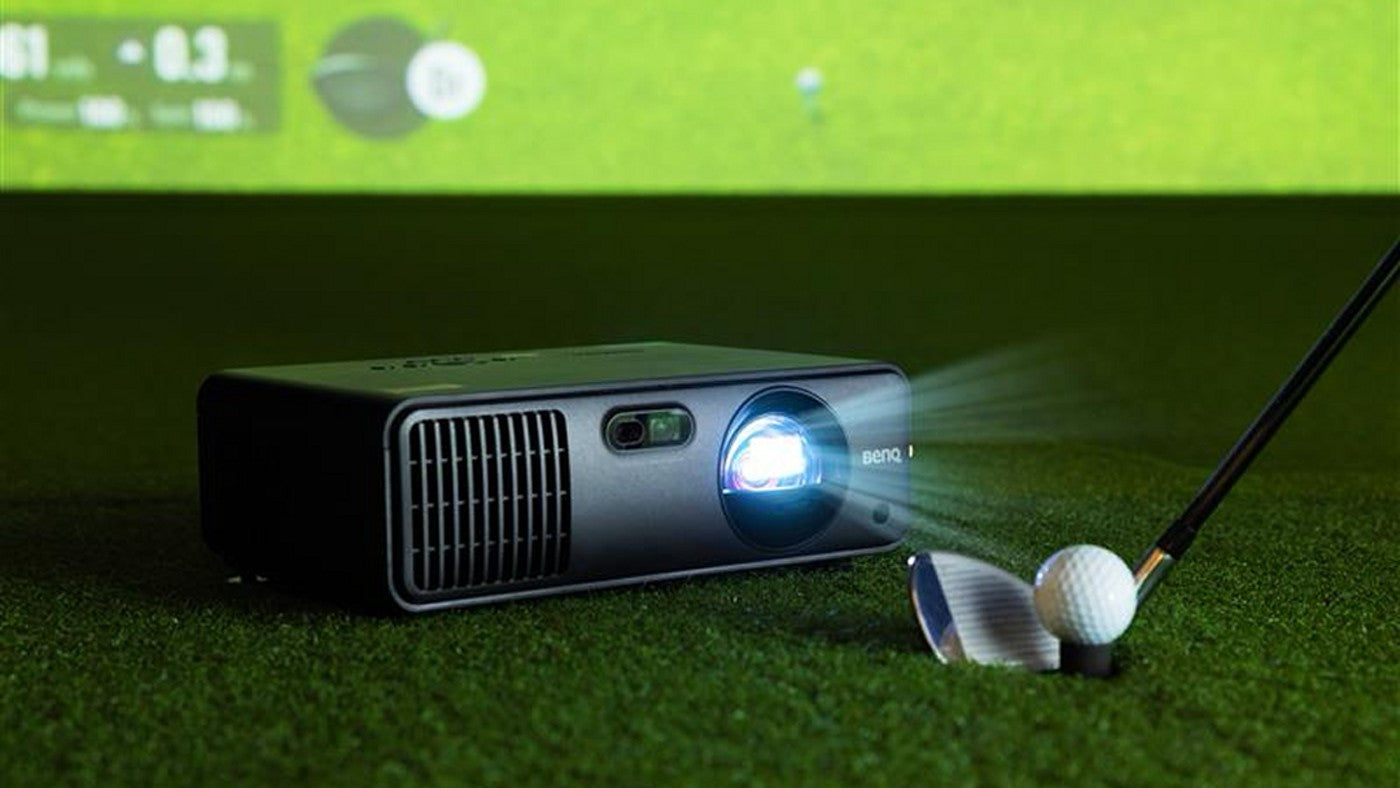

| Do I need this much optical positioning freedom? | AK700ST versus LK936ST | Automated screen fitting and a 4,000-lumen rating versus optical lens shift and a 5,100-lumen rating. |
| Can I fit 4K into a shallower bay? | LK830ST versus LK936ST | The much shorter 0.496 throw ratio versus optical positioning flexibility. |
| Would a 1080p close-mount option meet the need? | LH860ST versus AH500ST | Resolution requirements, approximately 0.5 throw ratios and different brightness ratings. |
The LH860ST's 5,000-lumen rating is numerically close to the LK936ST's 5,100, but that does not make their image detail, lens design or installation features equivalent. Likewise, the AK700ST's automated fitting solves a different setup task from optical lens shift.
A purchase checklist for an expensive installation
- Specify the final picture. Record visible width, height, aspect ratio and the full optical image used to create it.
- Prove the location. Confirm lens distance, horizontal displacement and height together, with the projector aimed squarely.
- Inspect the real room conditions. Note direct light on the screen, hitting positions, shadows, mount clearance and access to the manual controls.
- Verify the signal path. Confirm the intended computer output and cable run at the resolution you plan to use.
- Compare the complete build. Include mounting, cabling, screen and computer requirements when comparing the current projector prices.
Should you choose the LK936ST?
If your room benefits from 4K, optical lens shift and the higher rated output and the distance works the LK936ST product page is the next place to check the current configuration and availability. If you are still arranging the room, use the simulator calculator to organize your dimensions and the simulator builder to compare the complete system.
For the exact combined lens-shift diagram, installation clearances and adjustment instructions, refer to the BenQ LK936ST user manual.
