The best golf simulator enclosure for your build is the one that fits the finished room, gives you the screen shape you want, and arrives with the components you expect to buy. A bigger screen is not an upgrade if its frame removes the clearance you need to swing or install the equipment.
This guide compares five enclosure choices available through Indoor Golf Kit: Carl's Place C-Series DIY, Carl's Place C-Series Pro, SIG8, SIG10 and SIG12. The recommendations below are based on their listed construction, dimensions and ordering options. They are planning recommendations, not claims from a hands-on durability test.
Use the shortlist here, then compare the complete equipment list in our Golf Simulator Builder. It lets you consider the enclosure alongside the launch monitor, projector and mat instead of treating the screen as an isolated purchase.
Start with the choice that solves your main constraint
| Your priority | Start with | Check before selecting |
|---|---|---|
| A DIY route with several size and screen-material choices | Carl's Place C-Series DIY | Actual outside dimensions and the separately supplied frame pipes |
| A more substantial structure with deeper enclosure options | Carl's Place C-Series Pro | The exact depth, 2-inch EMT pipe scope and approved mounting accessories |
| The narrowest frame in the numbered SIG range | SIG8 | Its square screen and the golfer's usable width at the ball |
| A wider 4:3 screen while keeping the SIG8's frame height | SIG10 | Its 10 ft 10 in outside width, plus clearance |
| The largest screen in the SIG8/10/12 group | SIG12 | Both the wider and taller frame, not just the screen diagonal |
These are different starting points, rather than a universal first-through-fifth ranking. Eliminate options that fail the room or installation checks before comparing screen materials and accessories.
Carl's Place C-Series DIY: for a build you want to specify
The C-Series DIY is a useful starting point when you want to select the enclosure size, screen material and accessories individually. The Indoor Golf Kit listing offers Standard, Preferred, Premium and High-Contrast Gray screen choices across its available configurations.
The base kit includes the selected screen, enclosure fabric, fittings and fastening hardware. The framing pipes are a separate part of the purchase. You can add the matching pipe kit or source the specified 1-inch EMT using the supplied cut sheet.
Its advantage is control over the scope. The responsibility is keeping that scope complete. If you compare the kit price with a frame-included enclosure, add the pipes and any selected protection or back-cover components before deciding which costs less.
Choose it when: a listed configuration works with your room and you are comfortable managing the component list. Reconsider it when: you need an enclosure intended to support a particular mounted device, or a deeper enclosure structure than the selected DIY configuration provides.
See the C-Series DIY kit and exact size chart. Our Carl's kit-versus-package guide explains why the separately listed package has a different purchase scope.
Carl's Place C-Series Pro: for depth and structural planning
The C-Series Pro is worth investigating when your plan calls for deeper side and overhead coverage or a more substantial enclosure structure. The listing provides multiple depth options and uses 2-inch EMT framing. Its base kit also requires the pipe scope to be checked separately.
Depth changes several parts of the project. It changes the material around the hitting area, the position of front frame members and the relationship between those members, the swing and the projector. A deeper enclosure is not automatically a better fit in a shorter room.
If you want to attach electronics to an enclosure, verify the exact manufacturer's approved accessory, load and attachment arrangement. The availability of a crossbar or mounting accessory does not make every frame member suitable for every device.
Choose it when: the selected Pro configuration solves a specific coverage or mounting-plan requirement and its full footprint fits. Reconsider it when: you are paying for depth or structural capacity that your room and equipment do not use.
Review the C-Series Pro kit and our DIY versus Pro comparison before choosing the size.
SIG8, SIG10 and SIG12: compare the actual frames
All three numbered SIG enclosures include push-pin poles and connectors, the selected impact screen, surround, protective foam padding and ball bungees in the current Indoor Golf Kit listings. A launch monitor, projector, hitting mat and software are separate.
| Model | Outside frame, W × H × D | Listed screen, W × H | Screen shape |
|---|---|---|---|
| SIG8 | 8 ft 4 in × 8 ft 4 in × 5 ft | 7 ft 7 in × 7 ft 7 in | 1:1 |
| SIG10 | 10 ft 10 in × 8 ft 4 in × 5 ft | 10 ft 1 in × 7 ft 7 in | 4:3 |
| SIG12 | 12 ft 2 in × 9 ft 4 in × 5 ft | 11 ft 5 in × 8 ft 7 in | 4:3 |
SIG8: when frame width is the limiting factor
The SIG8 is 30 inches narrower than the SIG10, while sharing its frame height and depth. That can make it a sensible shortlist option when the screen wall is narrow. Its square screen also means you must decide how a rectangular image will be displayed.
Choose the SIG8 for its smaller frame footprint after checking the hitting position. Do not assume that an 8-foot-4-inch frame establishes sufficient room width for the golfer, especially for both handednesses.

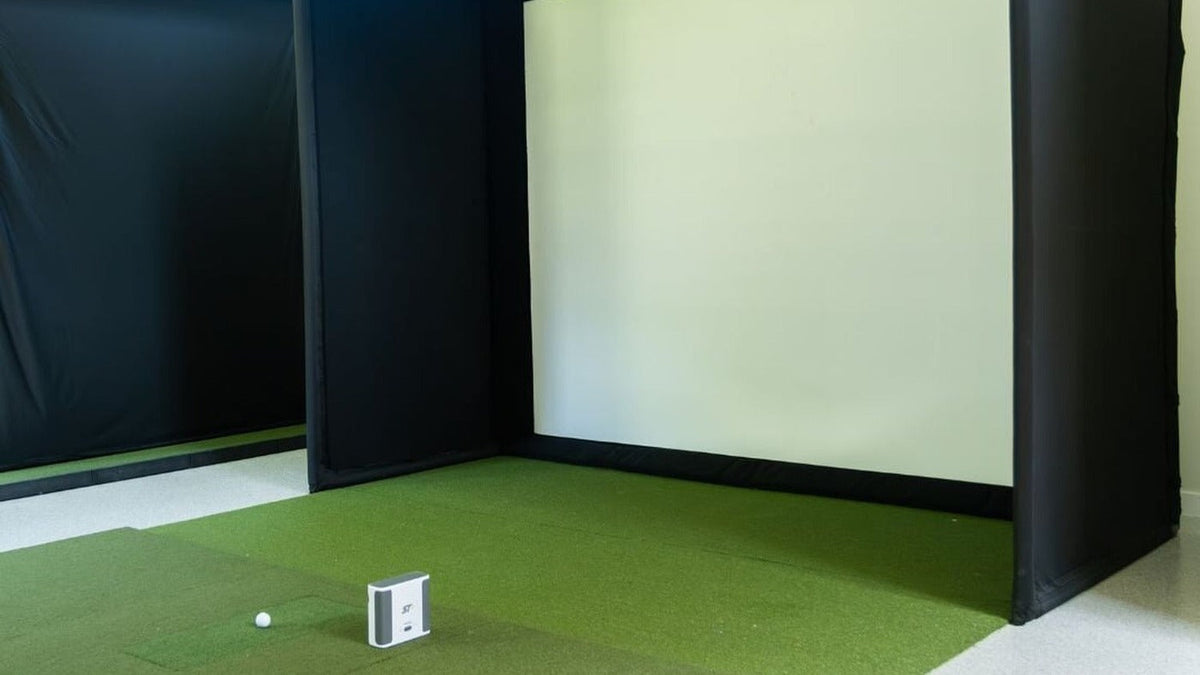

SIG10: when you want more screen width at the same frame height
The SIG10 adds screen width without adding frame height over the SIG8. That is a useful combination when a room can accept a wider enclosure but has a tighter installation-height limit.
Its 4:3 screen must still be matched to the projector's image settings and placement. “4K projector” does not by itself tell you whether the image will fill it. Compare the SIG8 and SIG10 screen-fit differences before selecting.
SIG12: when both the width and height genuinely fit
The SIG12 increases the outside width by 16 inches and the height by 12 inches compared with the SIG10. Choose it when the room supports that larger structure, the intended image size and the required installation clearance.
It is a poor upgrade if the extra height crowds a beam or the extra width blocks access. Use the SIG10 versus SIG12 measurement guide for the closer comparison.
A twelve-foot room does not automatically fit a twelve-foot enclosure
Consider a hypothetical installation area measuring 144 inches wide and 108 inches high. This example checks frame fit only; it does not approve the swing or complete simulator.
- A SIG10 frame at 130 × 100 inches leaves 14 inches across the width and 8 inches above the frame before other deductions. Its assembly and room-use checks still need to pass.
- A SIG12 frame at 146 × 112 inches exceeds both measurements. It is eliminated before projector or mat selection.
- A Carl's DIY configuration labeled 8.5 × 11.5 feet has a listed outside frame of 107.5 inches high × 140.3 inches wide. It leaves only half an inch above the frame and 1.85 inches per side if centered, falling short of Carl's stated minimum assembly/buffer guidance.
This is why rounded labels cannot be used as room-fit dimensions. Measure the finished area, use the exact outside drawing and keep installation clearance separate from swing clearance.
Compare complete scope, not the opening price
Put two candidate enclosures beside the same checklist. For each line, record included, separately selected or not needed. Include pipes, impact screen material, frame protection, side extensions, baffles, back cover and the hardware needed to support any selected accessory.
Then add the same projector, monitor, mat and computer assumptions to both builds. Otherwise, you may be comparing one enclosure's complete equipment plan with another enclosure's starting kit price.
Keep replacement planning in the comparison as well. Record the exact enclosure version, screen dimensions, fastening method and selected material. A replacement screen of approximately the same diagonal is not necessarily a compatible replacement.

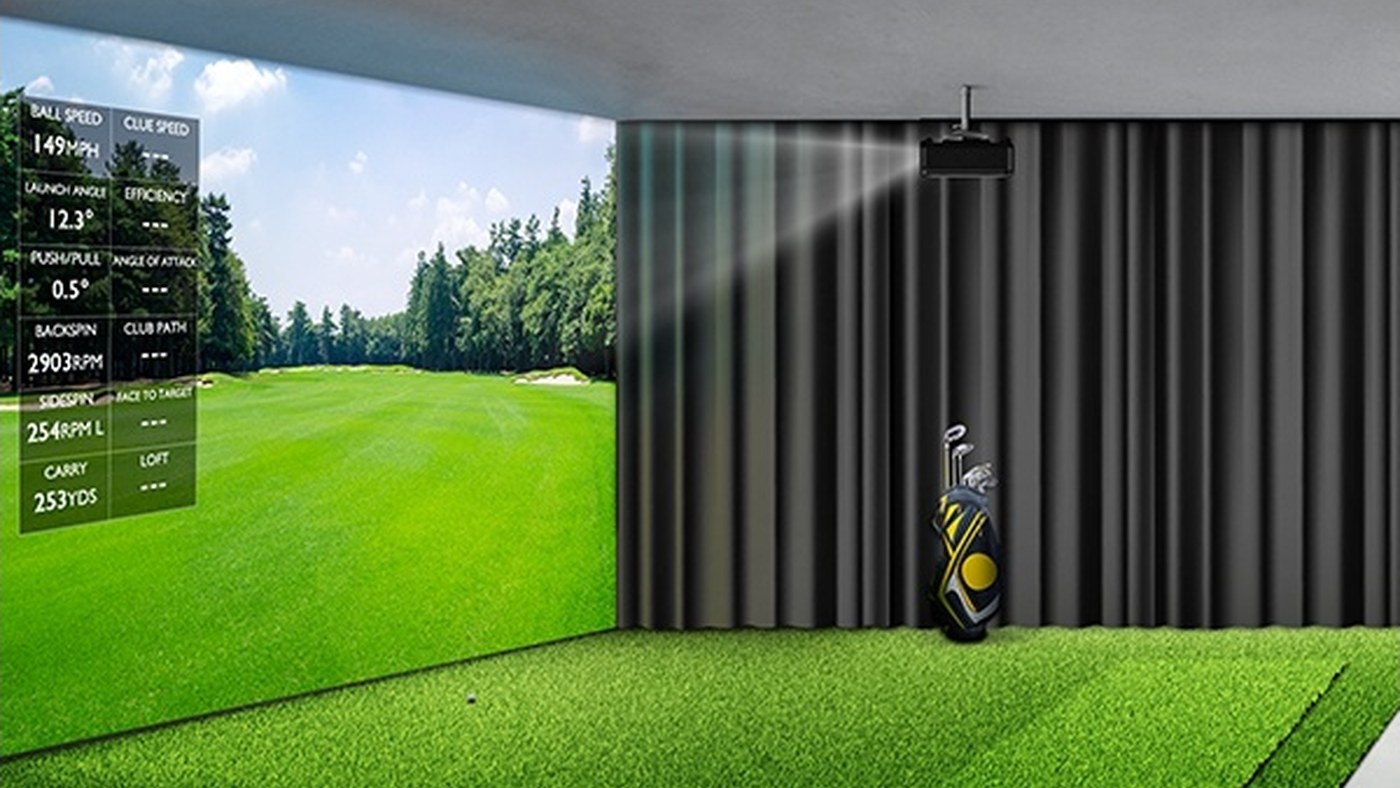

Match the screen to the projector and the room
Screen material, ambient light, projected image size and lens placement work together. Start with the room's lighting conditions and the image shape you need. Do not choose a gray screen, extra lumens or 4K resolution as a substitute for checking that geometry.
Our 4:3, 16:9 and square screen guide explains image shape. The 1080p versus 4K comparison helps you decide where resolution is worth the additional system cost.
Make the final enclosure decision in the complete build
- Eliminate frames that fail the outside-dimension and clearance checks.
- Confirm the golfer's ball position and swing independently.
- Choose a screen shape the projector can produce in the available lens position.
- Compare the complete enclosure scope, including pipes and selected accessories.
- Add the shortlisted enclosure to your simulator build and review the other components around it.
Where pipes are a separate Builder line item, check that the selected size matches the enclosure. If you plan to supply your own pipes, follow the corresponding manufacturer's cut sheet. Save the build link after reviewing the exact options; a photograph alone does not show what is included in the order.
Enclosure buying questions
Is the SIG10 always the best choice?
No. It is a useful option when its included frame and 4:3 screen match the room. A narrower SIG8, a larger SIG12 or a Carl's configuration may solve a different constraint better.
Does “enclosure kit” include everything needed to play?
No. Even a frame-included enclosure needs a suitable launch monitor, hitting surface and display arrangement. Projected simulation also needs the compatible computer and software required by the selected system.
Can I choose an enclosure before the launch monitor?
You can create a shortlist, but confirm the monitor's required mounting or tracking geometry before committing. Both have to work with the same ball position and room.
